Plastic box 【G01-001L】


Part No. #G01-001L

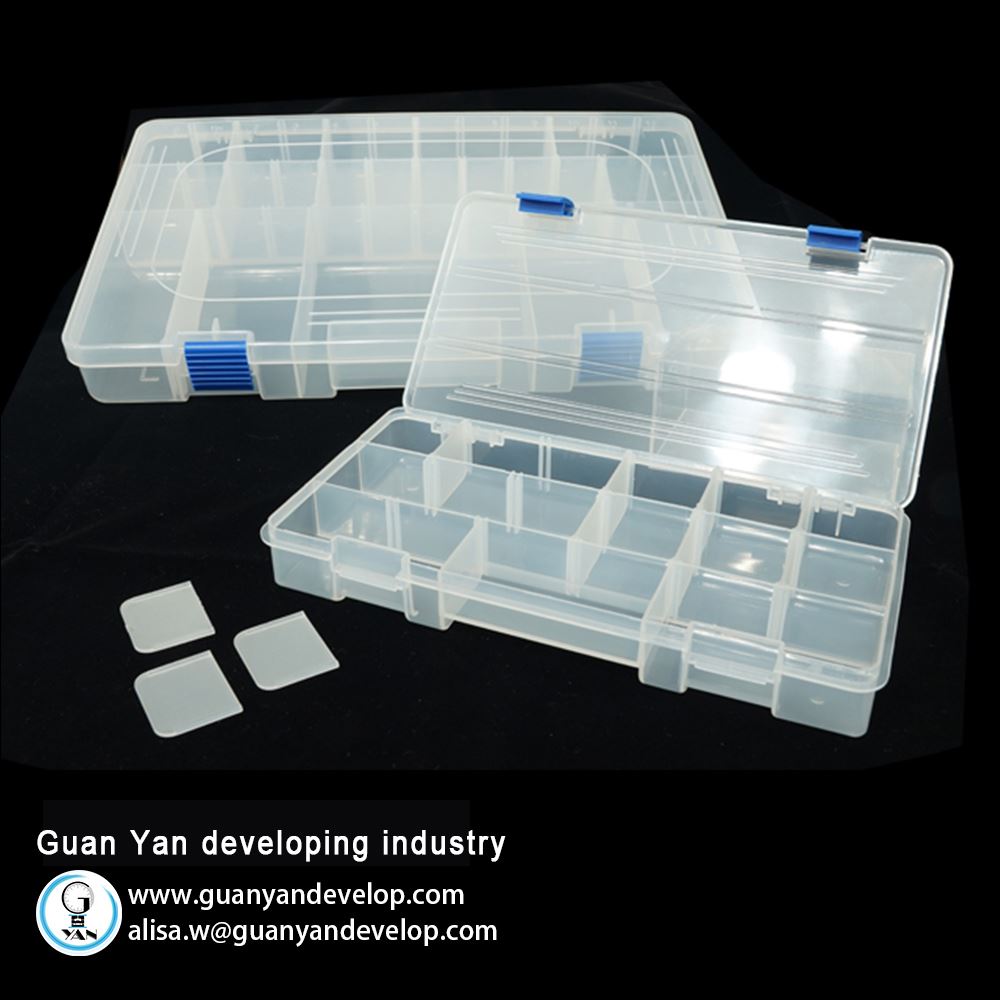

Plastic adjustable compartment storage box
Plastic adjustable compartment storage box

Introduction
This large plastic adjustable storage box is made of polypropylene, which is tough, durable and flexible. The translucent finish enables users to recognize the kits inside easily and quickly. The separate hooks ensure a long-term and frequent use. The removable dividers allow the users to size and arrange the compartments as desired.

Description

  • Tough, flexible, heat-resistant polypropylene body
  • Blue separate hooks for long term frequent use
  • Fillet rim bottom design to pick up kits/stuffs easily
  • Removable dividers to adjust the compartments as desired
  • Fillet bottom of the dividers match the box’s bottom perfectly
  • Translucent color for users to recognize the kits inside quickly and easily
  • Contains 2 large diverters and 8 small diverters
  • 44 slots for diverters to size the compartments
  • Front-central hollow design to take easily
  • For industrial use (O-ring, faucet seats, any small repair kits) or private use (jewelry, beads, earing, accessory)

Feature

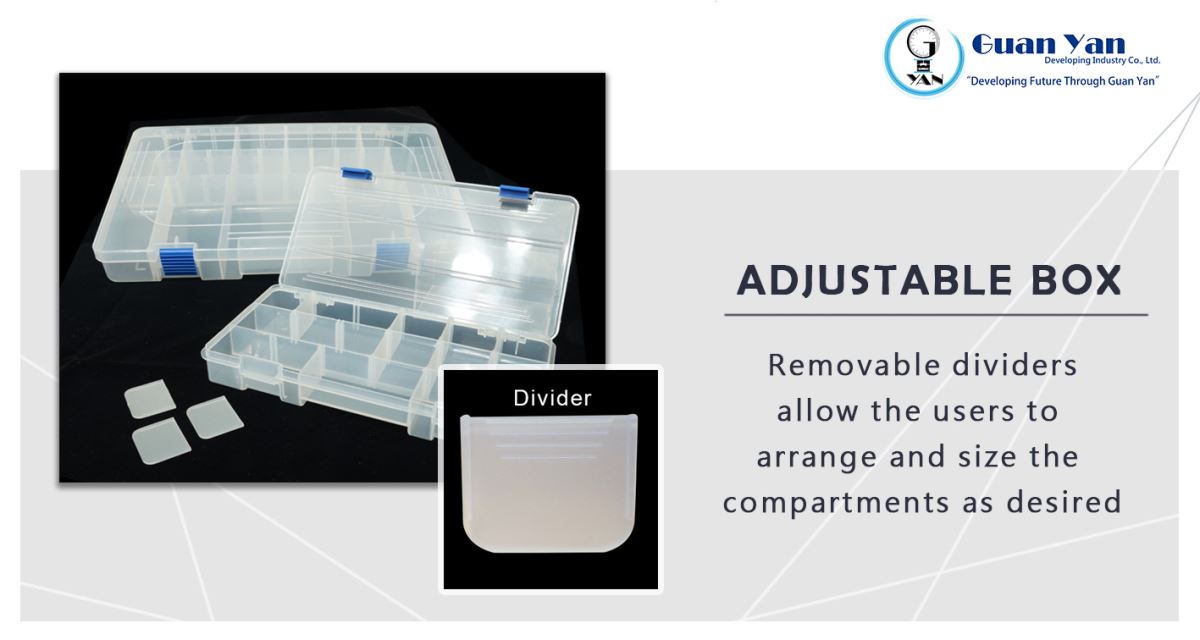

Adjustable compartment tool box-removable dividers-Guan Yan

plastic storage box - durable separate hook

Jewelry beads organizer box - plastic box-patented slot design

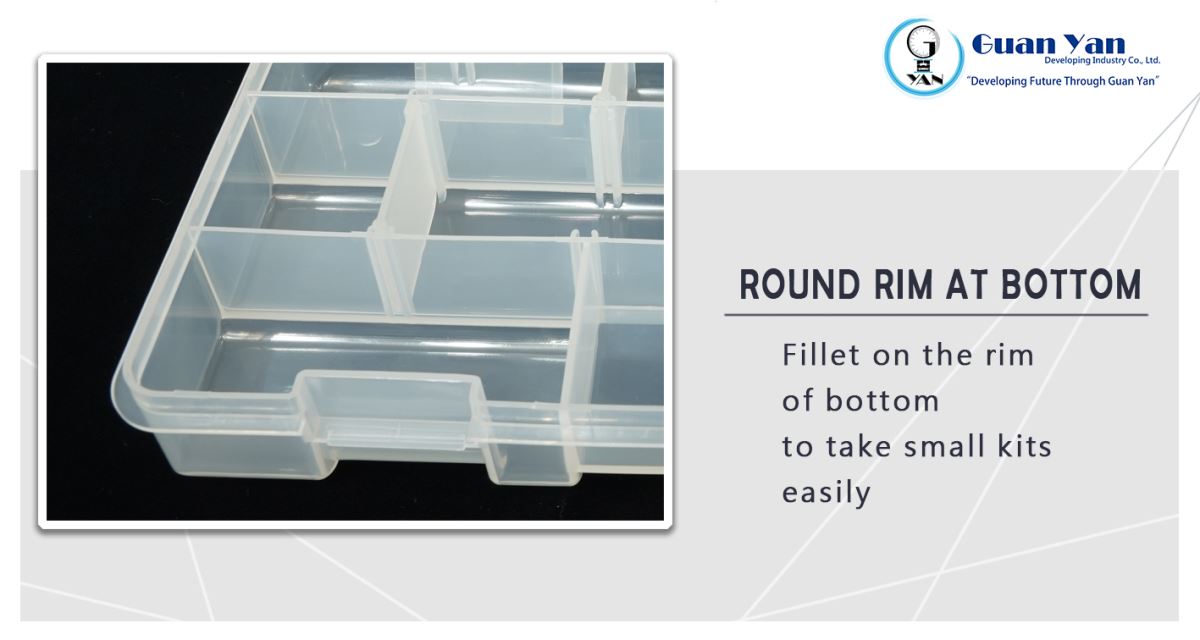

polypropylene durable organizer large size-round bottom rim

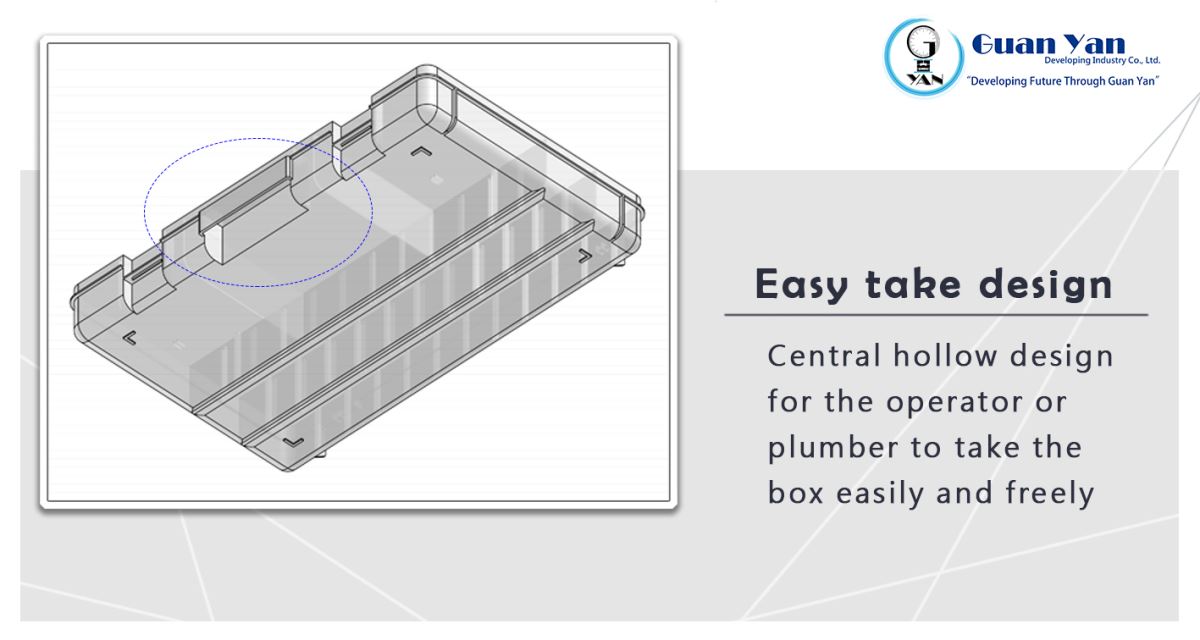

Adjustable storage organizer -box feature - central hollow design

Specification
Product name Large plastic adjustable organizer
Size Small/ Medium/ Large
Item No. G01-001L
Application Industrial use like o-ring, faucet seat, screw, washer, etc.
Private use like jewelry, beads, earing, etc.
Material Polypropylene
Finish Translucent
Content Large box *1
8 small dividers
2 large dividers
Dimension 358mm(L) x 220mm(W) x 45mm(H)

G01-001L-plastic box-large-with adjustable dividers-dimension drawing-Guan Yan


Project Introduction
Customer sent a sample box to us, but also advised that there were some defects on the original design. The hooks were easily broken after using for a while. Besides, the dividers cannot fit the body well. They wanted a sturdier construction and at the same time also allowed the compartment to be re-arranged to meet different users’ needs. Since the required quantity is large, we design and develop the mold for the improved design without any mold charge for our client.

Customer requirements
*Sturdy construction
*Light and easy to organize
*Tight and durable hook
*Adjustable compartment to meet the need of different users
*Easy to take small kits and parts
*Perfect for organizing and storing

Solution
After several times discussion with the customer, we change the material to polypropylene (P.P.) to prolong the life of the product. The property of polypropylene is harder and more heat-resistance. It’s tougher and flexible, so that it will not be broken when dropping. Polypropylene is translucent and enable users to recognize the kits inside easily.

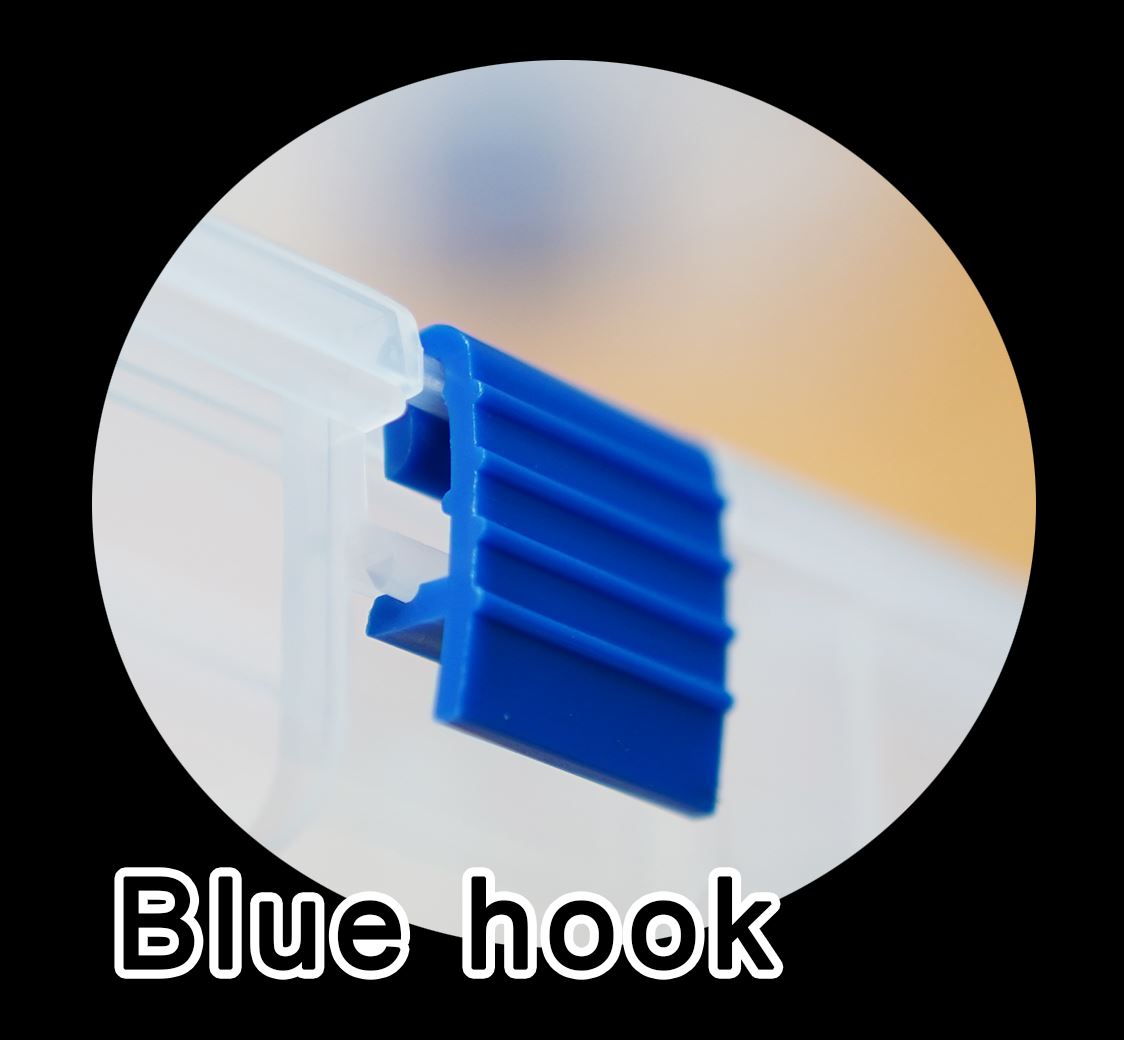

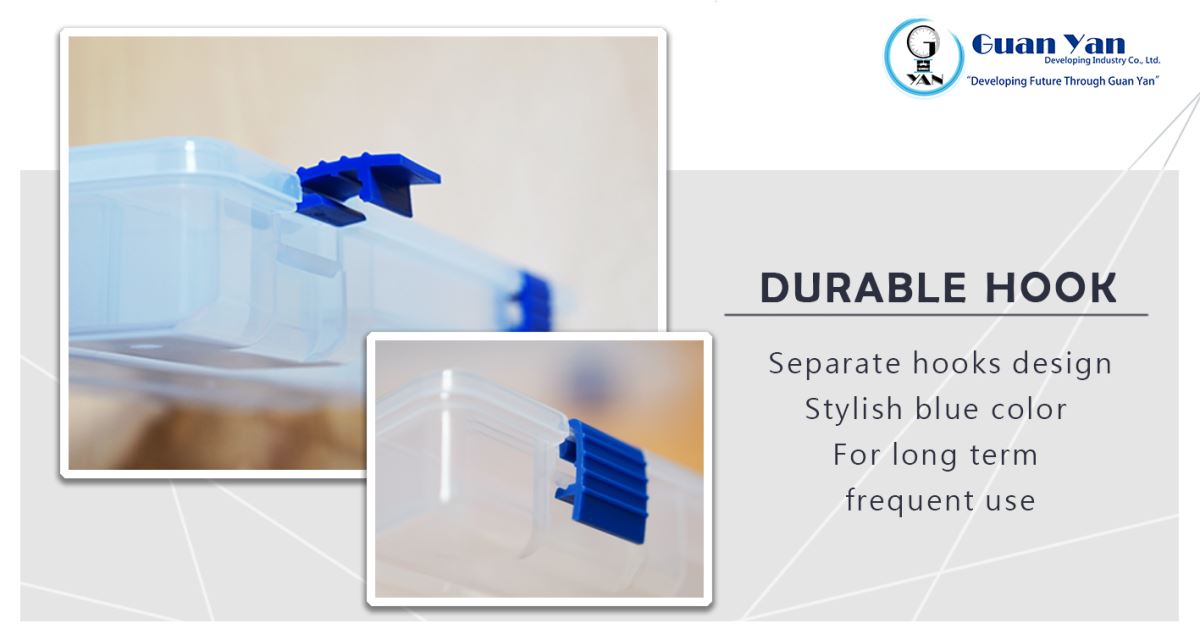

The body and the hook was one piece originally. The connection became brittle after using for a period, so it broke easily. Therefore, we separate the hooks and the body. The hooks are assembled on the body in the improved design. In this way, this plastic box can be used for a long time.
 Adjustable compartment tool box-Blue hook-Guan Yan

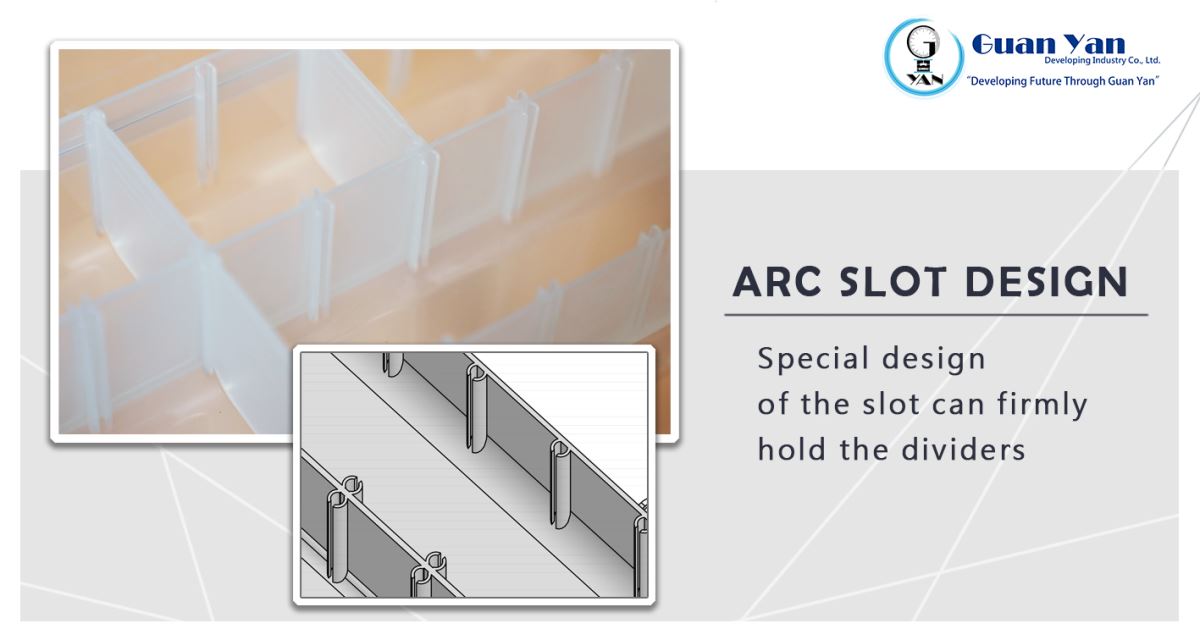

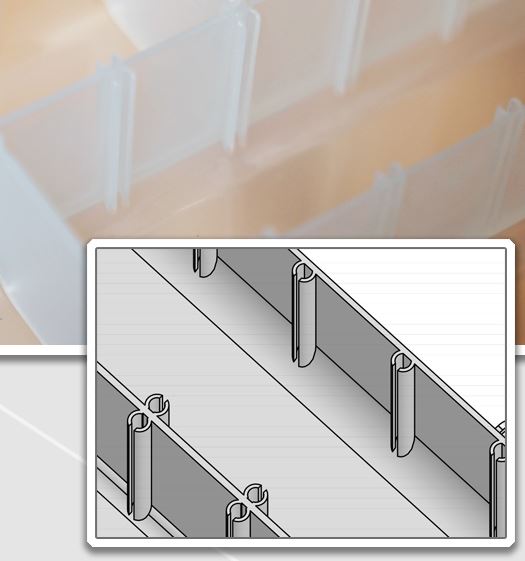

Also, we design arc slot to ensure that it can hold the dividers firmly, and the users can insert and take off the dividers easily. We later applied patent for this design. Therefore, this design is patented now.
organizer box - plastic box-patented slot design

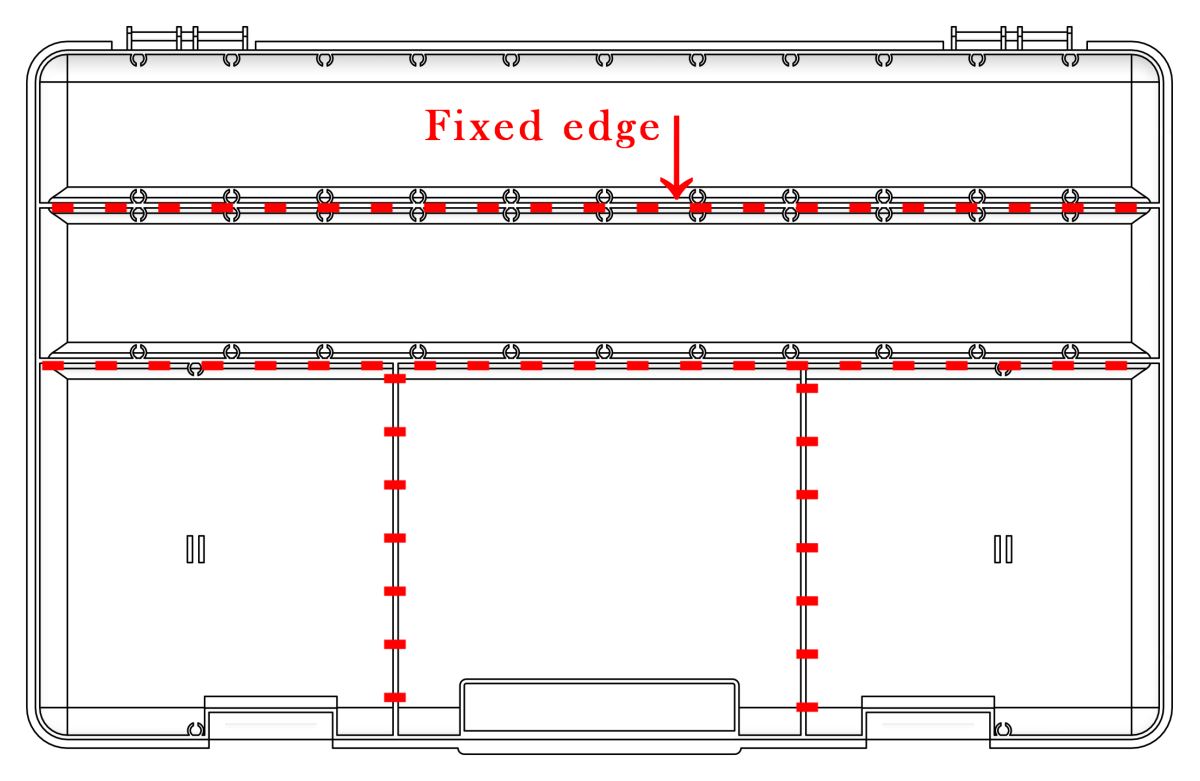

We design 5 fixed partitions as customer required. There are 44 slots with 8 small dividers and 2 large dividers each set. For the large partition, we also design small bracket to hold the large dividers.

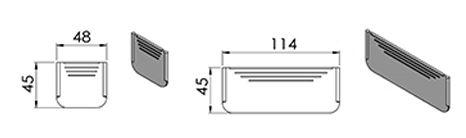

removable divider-adjustable polypropylene box - drawing-Guan Yandividers-adjustable storage case-Guan Yan
The rim of the box bottom are round design. In this way, users can pick small parts easily. Our dividers can fit the bottom perfectly. At the central-front of the box, we make it hollow, so that the users can reach hand into it to take the box easily.
